DT04-3P-L012 Deutsch Automotive Connectors DT 3 Pin Flange Mount Plug

Name: DT043PL012 Deutsch Automotive Connectors DT 3 Pin Flange Mount Plug
Brand: YBADDVANCE
Price: 1 USD

Quality DT04-3P-L012 Deutsch Automotive Connectors DT 3 Pin Flange Mount Plug for sale

Brand Name : YBADDVANCE

Model Number : DT04-3P-L012

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : Negotiation

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Gender : Male

Color : Grey

Voltage Rating : 250 V

Sealed/Unsealed : Sealed

Insulation resistance : 100M Min.

Standard : OEM Standard

Pin : 3 Pin

Part Number : DT04-3P-L012

Contact Now

DT04-3P-L012 Deutsch DT 3 Pin Flange Mount Plug

Description of Product

Product: Connectors

Number of Positions: 3 Position

Mounting Style: Flange Mount

Wire Gauge Range: 20 AWG to 14 AWG

Size:Width : 40.51 mm [ 1.595 in ]
Height : 31.75 mm [ 1.25 in ]
Length : 43.13 mm [ 1.698 in ]

Wire Range :2.23 – 3.68 mm [ .088 – .145 in ]

Specification

Keywords	Flange Mount Plug
Part Number	DT04-3P-L012
Housing Material	Polyamide (PA)
Current Rating	13 A
Material	PBT PA66
Mating Pin Diameter	1.59 mm [ .063 in ]
Centerline (Pitch)	10.01 mm [ .394 in ]
Description:	Automotive Connectors DT 3WAY RECEPTACLE FLANGE MOUNT
Quality Control	All goods will be 100% inspected before shipment
Housing Color	Grey
Operating Temperature range	-55 – 125 °C [ -67 – 257 °F ]
Replacement Brand	TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	CANADA,ITALY,Germany,Finland,UK,USA, and so on...
Gross weight	2kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

More details about pictures

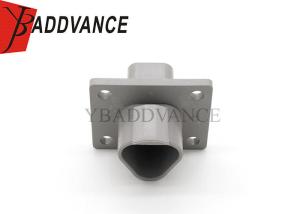

DT04-3P-L012 Deutsch Automotive Connectors DT 3 Pin Flange Mount Plug

Product Tags:

DT04-3P-L012 Deutsch Automotive Connectors

250V Deutsch Automotive Connectors

DT04-3P-L012 3 pin deutsch connector

DT04-3P-L012 Deutsch Automotive Connectors DT 3 Pin Flange Mount Plug Images
