2 Pin SuperSpark 1JZ Ignition Coil Plug Connector For Toyota 90980-11246 7283-8226-30

Name: 2 Pin SuperSpark 1JZ Ignition Coil Plug Connector For Toyota 9098011246 7283822630
Brand: YBADDVANCE
Price: 1 USD

Quality 2 Pin SuperSpark 1JZ Ignition Coil Plug Connector For Toyota 90980-11246 7283-8226-30 for sale

Brand Name : YBADDVANCE

Model Number : 90980-11246 7283-8226-30

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Color : Black

Martial : PBT/PA66

P/N : 90980-11246 7283-8226-30

Gender : Female

Feature : Waterproof

Way : 2 hole

HS code : 8536909000

Type : Fuel injector connector

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

90980-11246 7283-8226-30 2 Pin SuperSpark 1JZ Ignition Coil Connector for Toyota

Description

2 Pin SuperSpark 1JZ Ignition Coil Connector for Toyota

Please check the photos to ensure that it fits your application

1 Row ,2 way

Width :12.9mm

Height: 24.35mm

Length :26.1mm

Terminal Size: 2.30(090)

It come with :1 housing +2 wire seal +2 terminals

For the crimp connections ,it can also be soldered if required

Fits wire from 16 to 20 AWG

Temperature Range:-40 to 120deg.C

Specification

Item name	90980-11246 7283-8226-30 2 Pin SuperSpark 1JZ Ignition Coil Connector for Toyota
P/N	90980-11246
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin fuel injector Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

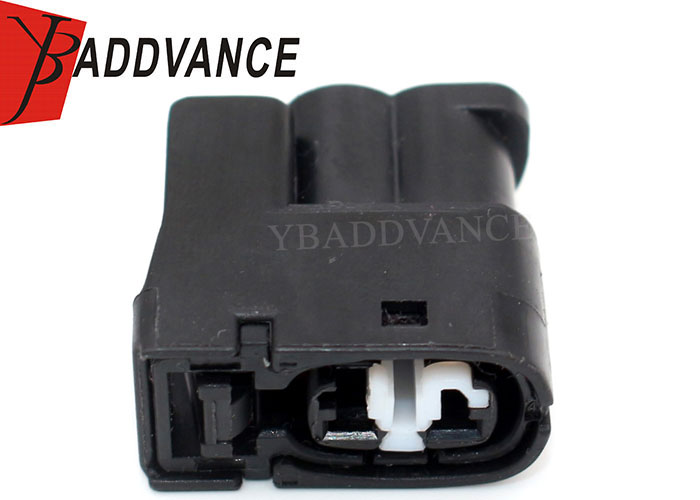

Product Picture Details

2 Pin SuperSpark 1JZ Ignition Coil Plug Connector For Toyota 90980-11246 7283-8226-30
